Beyond Basics: Designing High-Performance Systems with Polarization Maintaining Components

In the rapidly evolving field of photonics and optical communications, designing systems that can reliably transmit high-quality signals is a challenge that requires precision and advanced components. Among these, polarization maintaining components have emerged as essential elements for ensuring stability, efficiency, and high performance in complex optical systems. By leveraging these components, engineers can overcome common limitations associated with signal degradation, polarization fluctuations, and noise interference, particularly when paired with optical signal amplifiers and optical amplifiers.

Understanding Polarization Maintaining Components

Polarization maintaining (PM) components are specialized optical devices designed to preserve the polarization state of light as it travels through the system. Unlike standard optical fibers or components, which may allow the polarization of light to drift due to environmental changes or inherent material properties, PM components maintain a consistent orientation of the light’s electric field. This consistency is critical in applications where the polarization state directly affects signal quality and system performance, such as coherent communication systems, fiber optic sensors, and advanced laser setups.

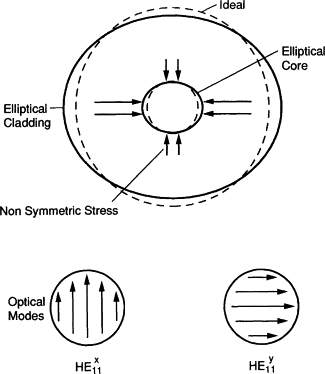

The core principle of polarization maintaining technology lies in its structural design. Typically, these components employ stress-applying elements or asymmetric core geometries to create birefringence within the optical path. This birefringence ensures that the two orthogonal polarization modes propagate at different velocities, effectively locking the light into a specific polarization state. The result is a reduction in polarization mode dispersion (PMD), which can otherwise lead to signal distortion and increased bit error rates in high-speed optical networks.

Integration with Optical Signal Amplifiers

High-performance optical systems often require amplification to maintain signal strength over long distances. This is where optical signal amplifiers play a pivotal role. An optical signal amplifier boosts the power of the incoming optical signal without the need to convert it into an electrical signal, enabling long-distance transmission and enhanced system sensitivity. However, the effectiveness of these amplifiers can be compromised if the polarization of the incoming signal is not properly maintained. Variations in polarization can lead to gain fluctuations, reduced efficiency, and increased noise, ultimately limiting the performance of the amplifier and the system as a whole.

Integrating polarization maintaining components before or within an optical signal amplifier ensures that the polarization state of the light remains stable during amplification. This alignment allows the amplifier to operate at optimal efficiency, providing consistent gain and minimizing signal degradation. For example, in coherent detection systems, where the phase and polarization of the optical signal are critical for accurate demodulation, the combination of PM components and optical signal amplifiers enables high-fidelity transmission even in challenging network environments.

Enhancing System Performance with Optical Amplifiers

Optical amplifiers, in general, are fundamental to modern fiber optic networks. They extend the reach of communication links, reduce the need for electronic regeneration, and improve overall network scalability. However, achieving peak performance from an optical amplifier requires careful attention to polarization effects. Uncontrolled polarization can induce polarization-dependent gain (PDG), which creates uneven amplification across different polarization states. This uneven amplification can manifest as signal fading, noise spikes, or degradation in bit error performance, all of which are detrimental to high-speed, high-capacity networks.

By incorporating polarization maintaining components into systems that use optical amplifiers, engineers can mitigate these polarization-related challenges. The PM components ensure that the input signal to the amplifier maintains a fixed polarization orientation, effectively eliminating PDG and optimizing the amplifier’s gain profile. This approach is particularly valuable in dense wavelength division multiplexing (DWDM) systems, where multiple optical channels are transmitted simultaneously. Consistent polarization ensures that all channels experience uniform amplification, preserving the integrity of the multiplexed signal and reducing cross-talk between channels.

Design Considerations for High-Performance Systems

Designing high-performance optical systems with polarization maintaining components requires careful consideration of multiple factors. First, selecting the appropriate PM fiber or component is critical. Factors such as the extinction ratio, insertion loss, and wavelength compatibility must align with the system’s operational requirements. A high extinction ratio ensures minimal leakage of unwanted polarization modes, while low insertion loss maintains signal strength throughout the optical path.

Second, the integration of PM components with optical signal amplifiers or optical amplifiers must be carefully managed. Misalignment of polarization axes between components can introduce additional losses or unwanted polarization rotation, reducing the effectiveness of the system. Precision alignment techniques and specialized connectors are often employed to ensure that polarization orientation is preserved across all components in the signal chain.

Environmental stability is another important consideration. Temperature fluctuations, mechanical stress, and vibration can all affect the polarization state of light, even in PM components. Therefore, high-performance systems often incorporate environmental control measures or robust packaging designs to maintain consistent operation. This level of attention to detail ensures that both optical signal amplifiers and optical amplifiers function reliably under varying operating conditions.

Applications in Advanced Optical Networks

The combination of polarization maintaining components with optical signal amplifiers and optical amplifiers is critical in several advanced applications. In coherent optical communication systems, where phase-sensitive detection is used, maintaining polarization is essential for accurate signal demodulation. PM components minimize polarization-related noise and ensure that optical signal amplifier deliver consistent gain, enhancing overall link performance.

Similarly, in fiber optic sensing, PM fibers are used to preserve the polarization state of probe signals, improving measurement accuracy in applications such as distributed temperature sensing, strain monitoring, and interferometric sensors. Optical amplifiers in these systems boost weak backscattered signals, and the stability provided by PM components ensures that the amplified signal retains its integrity for precise sensing.

High-power laser systems also benefit from PM components. When combined with optical amplifiers, PM fibers prevent polarization-induced beam distortions and maintain the desired mode quality, which is essential for applications ranging from material processing to scientific research.

Future Trends and Innovations

The demand for higher data rates, longer transmission distances, and more reliable optical networks continues to drive innovation in polarization maintaining technology. Emerging materials and advanced fabrication techniques are enabling PM components with lower insertion loss, higher extinction ratios, and improved environmental resilience. These advancements, when coupled with sophisticated optical signal amplifiers and optical amplifiers, promise to push the limits of system performance even further.

Additionally, the integration of PM technology into compact, multi-functional devices is becoming increasingly common. Photonic integrated circuits (PICs) now feature on-chip polarization management, allowing for more scalable and efficient systems. This trend reduces system complexity while maintaining the benefits of stable polarization, ultimately supporting the growing demand for high-capacity, high-performance optical networks.

Conclusion

Polarization maintaining components are no longer optional in high-performance optical systems—they are essential for achieving stability, efficiency, and reliability. By preserving the polarization state of light, these components enhance the performance of both optical signal amplifiers and optical amplifiers, ensuring consistent gain, reduced noise, and minimal signal degradation. As optical networks continue to expand in capacity and complexity, the role of PM technology will only grow in importance, providing the foundation for the next generation of high-speed, high-fidelity optical communication and sensing systems. Thoughtful integration of PM components, careful system design, and attention to environmental factors are key to unlocking the full potential of these advanced optical systems.
